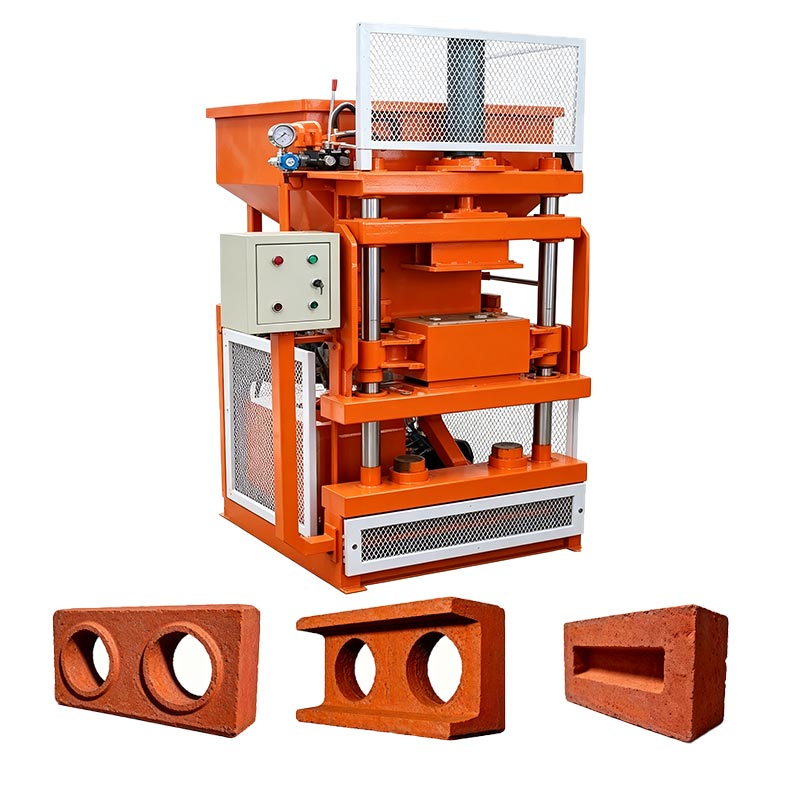

QTS1-10 Clay Brick Making Machine

The QTS1-10 clay brick machine is a small-to-medium-sized hydraulic press designed to produce interlocking clay blocks. It utilizes clay, red soil, or general earth as primary raw materials, mixed with a small amount of cement. As the bricks are formed via compression rather than firing, the machine is classified as eco-friendly, non-fired brick-making equipment. Developed specifically for small-to-medium brickyards, rural infrastructure projects, and overseas markets (including Africa, Southeast Asia, and South America), the machine features a compact structure and a small footprint. It can be powered by electricity or an optional diesel engine, making it suitable for regions with unstable power supplies. Equipped with a PLC semi-automatic hydraulic control system, the machine integrates material feeding, compression molding, and automatic demolding. It produces one brick per cycle with a short molding time, requires minimal manpower, and offers a low investment threshold with quick returns, making it a popular choice for small building material processing plants.

Dimensions： 1600 × 1400 × 2100 mm

Weight: 850–1000 kg

Molding Cycle: 6–10 seconds/cycle

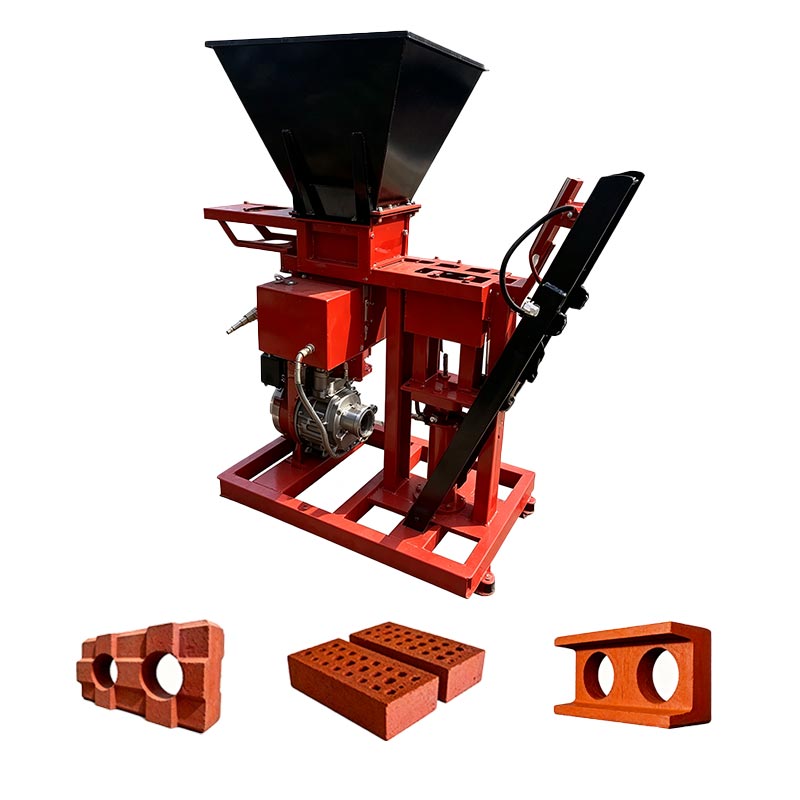

QTS1-25 Clay Brick Making Machine

The QTS1-25 clay brick machine is an upgraded, fully automatic hydraulic block-forming machine designed for non-fired clay bricks; it serves as a primary model for small-scale clay brick production. Utilizing red soil, clay, or loam as base materials mixed with a small amount of cement, the machine processes the mixture through crushing, screening, and mixing before forming it under high pressure. No high-temperature kiln firing is required; once molded and demolded, the bricks achieve construction-grade strength through natural air curing.

Dimensions： 1700 × 1500 × 2200 mm

Weight: 1100 kg

Molding Cycle: 8–12 seconds

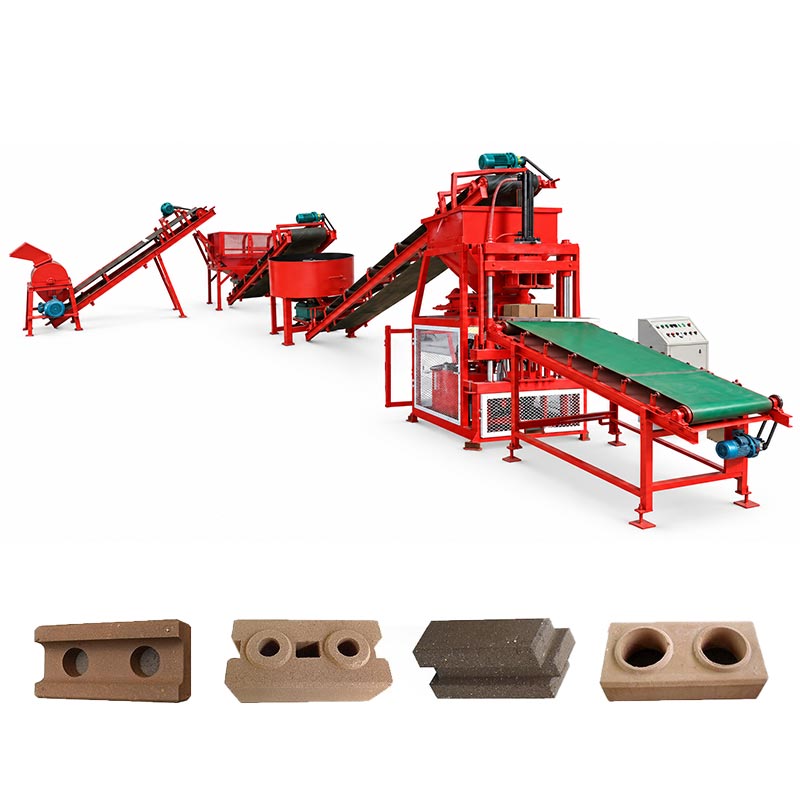

QTS2-10 Clay Brick Making Machine

The QTS2-10 clay brick machine is a compact block-forming unit utilizing hydraulic transmission and automated control technologies. It primarily uses raw materials such as clay, shale, and fly ash to produce wall materials including standard bricks, hollow bricks, paving bricks, and interlocking blocks. Featuring a compact structure and user-friendly operation, this model is suitable for small-to-medium-sized brick plants, rural building material enterprises, and on-site brick production at construction projects.

Dimensions： Approx. 1,600 × 1,400 × 2,100 mm

Weight: Approx. 1,400–1,500 kg

Molding Cycle: Approx. 10 seconds

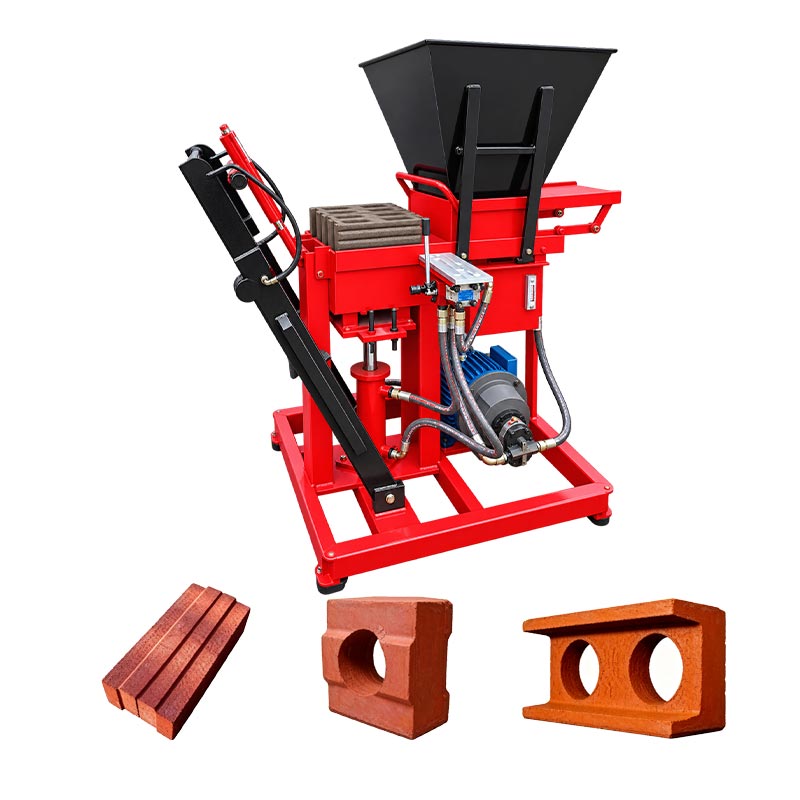

QTS2-25 Clay Brick Making Machine

The QTS2-25 is a dual-mold, hydraulic, non-fired clay interlocking block molding machine. Capable of producing two bricks per cycle, it offers significantly higher efficiency than single-mold models, making it a cost-effective, primary choice for small-to-medium-sized overseas brick plants and engineering contractors. Utilizing red soil, clay, or loam as primary raw materials—mixed with a small amount of cement—the machine shapes blocks through high-pressure hydraulic compression. No kiln firing is required; once demolded, the bricks achieve structural strength through natural air curing.

Dimensions： 1850 × 1500 × 2200 mm

Weight: 1800–2100 kg

Molding Cycle: 20–25 seconds/cycle

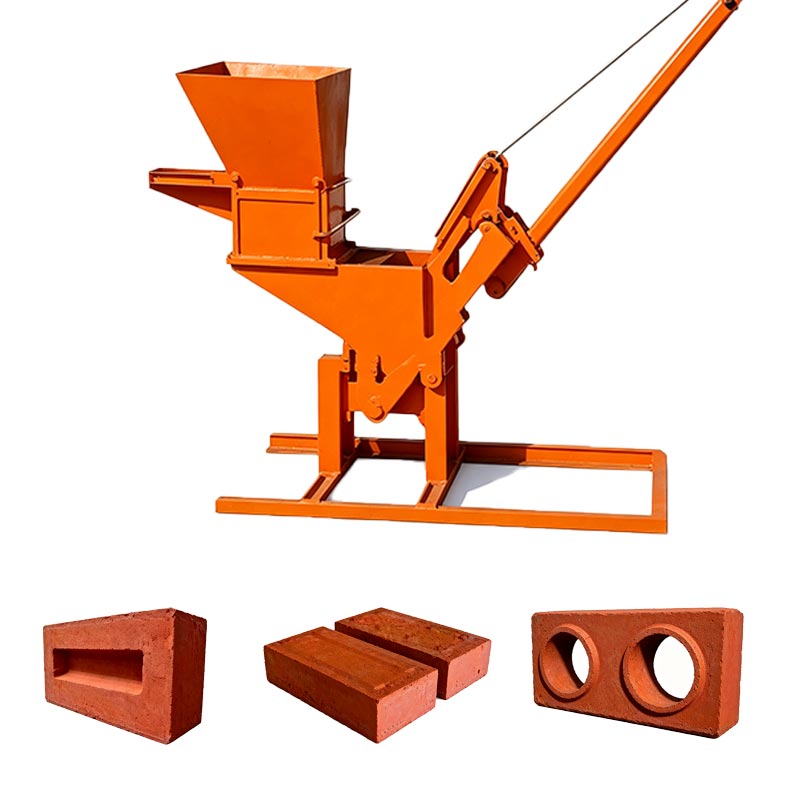

QTS2-40 Manual Clay Brick Making Machine

The QTS2-40 clay brick machine is a fully manual, dual-mold, non-fired clay brick-making unit. It is a lightweight, zero-electricity, and cost-effective entry-level model designed specifically for areas without power grids, remote villages, and small-scale infrastructure projects. Requiring neither electric motors nor diesel engines, the machine operates via manual leverage to compress and form bricks, effectively solving the challenge of setting up production facilities in off-grid regions. Its core advantage lies in its dual-mold design, capable of producing two clay bricks per cycle—offering productivity far superior to single-mold manual machines—while maintaining extremely low investment costs, portability, and ease of use for beginners.

Dimensions： 1500 × 600 × 800 mm

Weight: 260 kg

Molding Cycle: 35–40 seconds per cycle

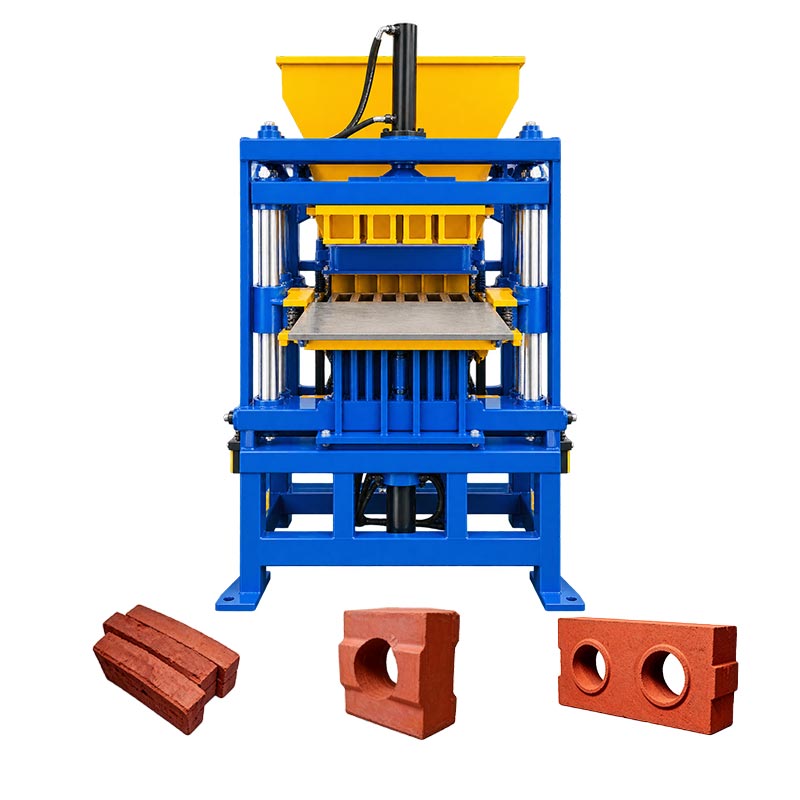

QTS4-10 Automatic Clay Brick Making Machine

The QTS4-10 fully automatic hydraulic clay brick machine is a high-output, four-mold model designed for non-fired clay brick production. It is currently a best-selling machine in the small-to-medium-scale automated clay brick sector, offering the highest production capacity and superior stability. The machine produces four standard interlocking clay bricks per molding cycle.

Dimensions： 2,260 × 1,500 × 2,380 mm

Weight: 1,600 kg

Molding Cycle: 6–10 seconds

GET FREE QUOTE

1. What types of blocks can this machine produce?

By changing molds, the machine can produce hollow blocks, solid blocks, paving bricks, interlocking pavers, curbstones and other concrete products.

2. What raw materials can be used?

Common materials include cement, sand, crushed stone, fly ash, slag and other locally available aggregates. The exact mix depends on the required block strength and finish.

3. Can the machine be customized for my project?

Yes. We can recommend or customize the machine configuration, mold design, production capacity and automation level according to your block samples and factory conditions.

4. What is included with the machine?

Standard supply normally includes the main block machine, control system and selected mold. Mixers, conveyors, pallet systems and other auxiliary equipment can be added as required.

5. Do you provide installation and after-sales support?

Yes. We provide installation guidance, commissioning, operator training, technical support and spare-parts service. Remote and on-site support options are available.
